home > Strategic Products > Air Dryer > Refrigerated Air Dryer/For Use in Europe, Asia, and Oceania IDFA E/F

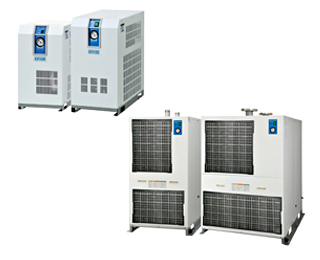

Refrigerated Air Dryer/For Use in Europe, Asia, and Oceania IDFA E/F

Refrigerated Air Dryer/For Use in Europe, Asia, and Oceania IDFA E/F

[su_column size=”2/3″]

Description

  • EEC Directive compliant product (with CE mark)
  • Power supply voltage: Single-phase 230 VAC (50 Hz)

[/su_column]
[su_column size=”1/3″ last=1][su_box title=”Related Downloads” style=”glass” box_color=”#007bc2″ title_color=”#f0f0f0″ radius=”6″]
Product Catalog
2D CAD File
3D CAD File
Manual
DoC
[/su_box][/su_column]

Series Rated inlet condition Air flow capacity (m3/h [ANR] )
Outlet air pressure dew point 3°C		 Air flow capacity (m3/h [ANR] )
Outlet air pressure dew point 7°C		 Air flow capacity (m3/h [ANR] )
Outlet air pressure dew point 10°C		 Refrigerant Port size
IDFA3E 35°C
0.7MPa 		12 15 17 R134a
（HFC） 		Rc3/8
IDFA4E 35°C
0.7MPa 		24 31 34 R134a
（HFC） 		Rc1/2
IDFA6E 35°C
0.7MPa 		36 46 50 R134a
（HFC） 		Rc3/4
IDFA8E 35°C
0.7MPa 		65 83 91 R134a
（HFC） 		Rc3/4
IDFA11E 35°C
0.7MPa 		80 101 112 R134a
（HFC） 		Rc3/4
IDFA15E 35°C
0.7MPa 		120 152 168 R134a
（HFC） 		Rc1
IDFA22E 35°C
0.7MPa 		182 231 254 R407C
（HFC） 		R1
IDFA37E 35°C
0.7MPa 		273 347 382 R407C
（HFC） 		R1 1/2
IDFA55E 35°C
0.7MPa 		390 432 510 R407C
（HFC） 		R2
IDFA75E 35°C
0.7MPa 		660 720 822 R407C
（HFC） 		R2
IDFA100F-38 40°C
0.7MPa 		– – 960 R407C
（HFC） 		R2
IDFA125F-38 40°C
0.7MPa 		– – 1210 R407C
（HFC） 		R2 1/2
IDFA150F-38 40°C
0.7MPa 		– – 1500 R407C
（HFC） 		DIN flange 80
IDFA100F-40 35°C
0.7MPa 		860 – – R407C
（HFC） 		R2
IDFA125F-40 35°C
0.7MPa 		1100 – – R407C
（HFC） 		R2 1/2
IDFA150F-40 35°C
0.7MPa 		1340 – – R407C
（HFC） 		DIN flange 80
