home > Strategic Products > Electric Actuators > Slider Type > Electric Actuator High Rigidity Slider Type Series LEJ

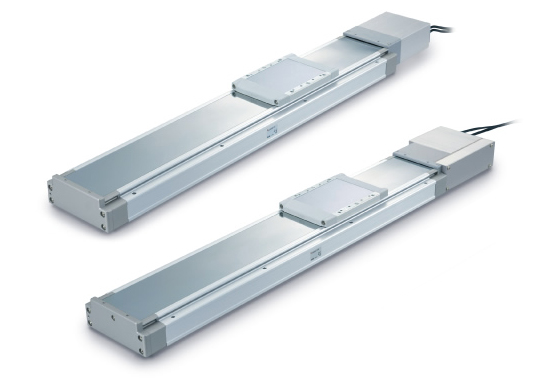

Electric Actuator High Rigidity Slider Type Series LEJ

Electric Actuator High Rigidity Slider Type Series LEJ

[su_tabs]
[su_tab title=”Features”]

Ball Screw Drive, Belt Drive [AC Servo Motor (100/200 W)]

  • Ball Screw Drive Series LEJS / Size: 40, 63
    Max. work load: 85 kg
    Positioning repeatability: ±0.02 mm
    Max. acceleration/deceleration: 20000 mm/s2

[su_column size=”1/2″][/su_column][su_column size=”1/2″ last=1][/su_column]

  • Belt Drive Series LEJB / Size: 40, 63
    Max. stroke: 3000 mm
    Max. speed: 3000 mm/s
    Max. acceleration/deceleration: 20000 mm/s2

[su_column size=”1/2″][/su_column][su_column size=”1/2″ last=1][/su_column]

  • Compatible Drivers

Low-profile/Low center of gravity

Height dimension reduced by approx. 31% (Reduced by 28 mm)

[su_column size=”1/2″]Workpiece does not interfere with the motor
[/su_column][su_column size=”1/2″ last=1]Weight reduction
[/su_column]

High precision/High rigidity

Double axis linear guide reduces deflection

Reduction of the installation labor

Possible to mount the main body without removing the external cover, etc.

Solid state auto switch can be mounted

Switch wiring can be placed in the body
D-M9 W (2-color indication), D-M9


[/su_tab]
[su_tab title=”Application Examples”]
[su_column size=”1/2″][/su_column][su_column size=”1/2″ last=1][/su_column]
[/su_tab]
[su_tab title=”Series Variations”]

[/su_tab]
[su_tab title=”AC Servo Motor Driver”]

[/su_tab]
[/su_tabs]
