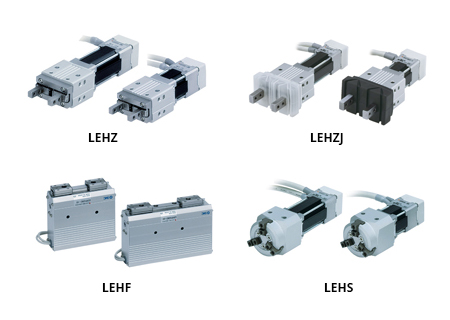

Electric Gripper LEH Series

Electric Gripper LEH Series

[su_column size=”2/3″]

Description

  • Easy setting: Data can be set 2 items, position and force.
    The controller is already set with the data of the actuator.
    (The actuator and controller are sold as a package.)
  • Drop prevention function is provided. (Self-lock mechanism is provided for all series.)
  • Power consumption reduced by self-lock mechanism.
  • Gripping check function is provided.
  • Possible to set position, speed and force. (64 points)
  • Compatible controllers: LECP6，LECP1，LECPA，LECPMJ

[/su_column]
[su_column size=”1/3″ last=1][su_box title=”Related Downloads” style=”glass” box_color=”#007bc2″ title_color=”#f0f0f0″ radius=”6″]
Product Catalog
2D CAD File
3D CAD File
Manual
DoC
[/su_box][/su_column]

Spec. Model Body
size		 Stroke/
both sides
(mm)		 Gripping
force [N]
Basic		 Gripping
force [N]
Compact		 Opening and
closing speed
(mm/s)
Step motor
(Servo/24 VDC) 		LEHZ
2 fingers 		10 4 6 to 14 2 to 6 5 to 80
Step motor
(Servo/24 VDC) 		LEHZ
2 fingers 		16 6 6 to 14 3 to 8 5 to 80
Step motor
(Servo/24 VDC) 		LEHZ
2 fingers 		20 10 16 to 40 11 to 28 5 to 100
Step motor
(Servo/24 VDC) 		LEHZ
2 fingers 		25 14 16 to 40 11 to 28 5 to 100
Step motor
(Servo/24 VDC) 		LEHZ
2 fingers 		32 22 52 to 130 ― 5 to 120
Step motor
(Servo/24 VDC) 		LEHZ
2 fingers 		40 30 84 to 210 ― 5 to 120
Step motor
(Servo/24 VDC) 		LEHZJ
2 fingers 		10 4 6 to 14 3 to 6 5 to 80
Step motor
(Servo/24 VDC) 		LEHZJ
2 fingers 		16 6 6 to 14 4 to 8 5 to 80
Step motor
(Servo/24 VDC) 		LEHZJ
2 fingers 		20 10 16 to 40 11 to 28 5 to 100
Step motor
(Servo/24 VDC) 		LEHZJ
2 fingers 		25 14 16 to 40 11 to 28 5 to 100
Step motor
(Servo/24 VDC) 		LEHF
2 fingers 		10 16（32）Note) 3 to 7 3 to 7 5 to 80
Step motor
(Servo/24 VDC) 		LEHF
2 fingers 		20 24（48）Note) 11 to 28 11 to 28 5 to 100
Step motor
(Servo/24 VDC) 		LEHF
2 fingers 		32 32（64）Note) 48 to 120 48 to 120 5 to 100
Step motor
(Servo/24 VDC) 		LEHF
2 fingers 		40 40（80）Note) 72 to 180 72 to 180 5 to 100
Step motor
(Servo/24 VDC) 		LEHS
3 fingers 		10 4 2.2 to 5.5 1.4 to 3.5 5 to 70
Step motor
(Servo/24 VDC) 		LEHS
3 fingers 		20 6 9 to 22 7 to 17 5 to 80
Step motor
(Servo/24 VDC) 		LEHS
3 fingers 		32 8 36 to 90 ― 5 to 100
Step motor
(Servo/24 VDC) 		LEHS
3 fingers 		40 12 52 to 130 ― 5 to 120
